CNC panel saw, beam saw
KS — 828C
KDT Machinery

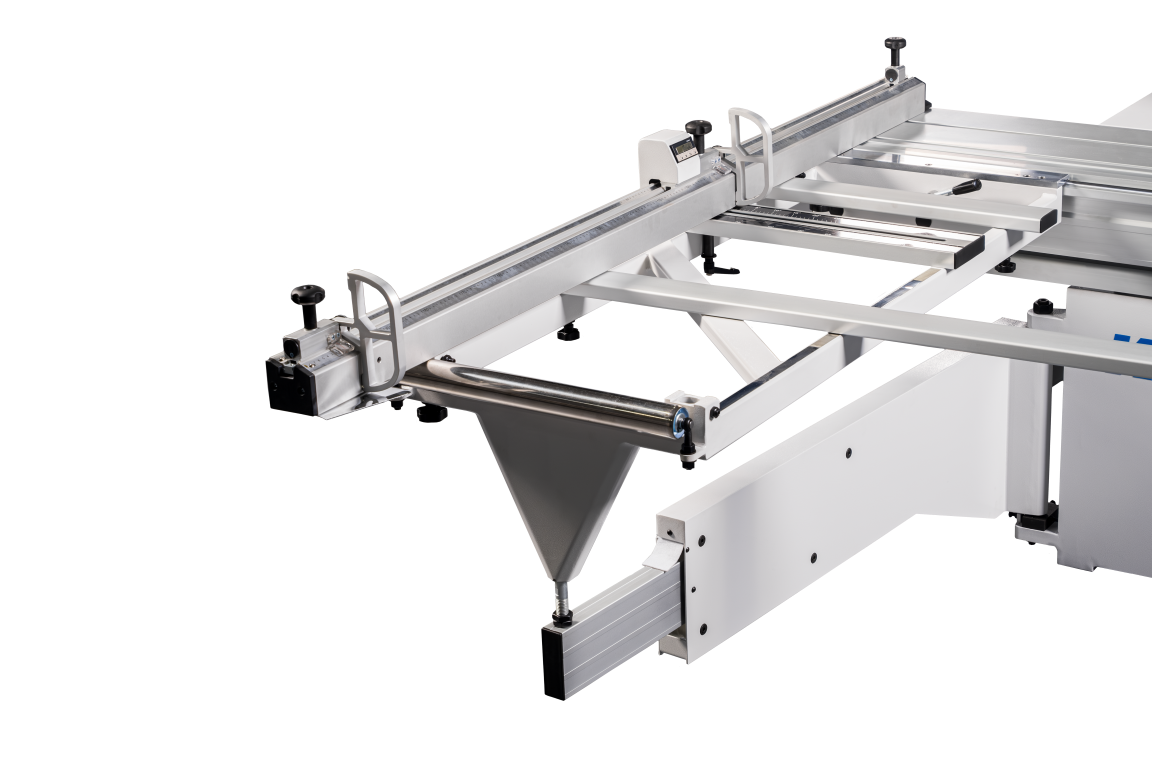

Download brochureAccurate sliding table saw good for cutting MDF, chip board, plastic board and solid wood materials. It is a widely used machine for all kinds of furniture making factories. Controlled by PC with CNC positioning system, using servo drive and high precision ball screw drive, ensuring accuracy.
CNC panel saw/beam saw KS — 828C (the size of the package to be cut is 2850*2850*90 mm ) is designed for cutting a package of board materials (chipboard, MDF, fiberboard, etc.), both lined and unlined. The machine is used in the conditions of large-scale and mass production for the manufacture of cabinet furniture, furniture panels, molded products
15" industrial PC
Accurate sliding table saw good for cutting MDF, chip board, plastic board and solid wood materials. It is a widely used machine for all kinds of furniture making factories. Controlled by PC with CNC positioning system, using servo drive and high precision ball screw drive, ensuring accuracy.
15" industrial PC
Accurate sliding table saw good for cutting MDF, chip board, plastic board and solid wood materials. It is a widely used machine for all kinds of furniture making factories. Controlled by PC with CNC positioning system, using servo drive and high precision ball screw drive, ensuring accuracy.
Sprcification KS — 828C
-
01.
Maximum cutting length, mm
2850
-
02.
Maximum cutting width, mm
2850
-
03.
Minimum grip dimensions when sawing, mm
34x45
-
04.
Maximum cutting thickness, mm
90
-
05.
Saw carriage travel speed, m/min
95
-
06.
Saw carriage idle speed, m/min
120
-
07.
Pusher speed, m/min
95
-
08.
Main saw diameter, mm
400/75
-
09.
Scoring saw diameter, mm
200/50
-
10.
Main saw drive power, kW
15
-
11.
Scoring saw drive power, kW
1.5
-
12.
Programmable pusher drive power, kW
2
-
13.
Saw carriage drive power, kW
2
-
14.
Gripper amount
7
-
15.
Installed power, kW
25
-
16.
Pneumatic system working pressure, MPa
0.6
-
17.
Overall dimensions LxWxH, mm
5915x5145x1890
-
18.
Weight, kg
4560
